Extension Installation

Get started with the Craft VSCode Extension in minutes. This guide covers installation from the marketplace, command line, and manual installation from GitHub releases.

Prerequisites

• Visual Studio Code: Version 1.75.0 or later
• Craft Diagram Server: Required for diagram generation features
  • See the Installation Guide for server setup
  • Server should run on http://localhost:8080 by default

Install from VS Code Marketplace (Recommended)

1. Open Visual Studio Code
2. Press Ctrl+Shift+X (Windows/Linux) or Cmd+Shift+X (Mac) to open the Extensions view

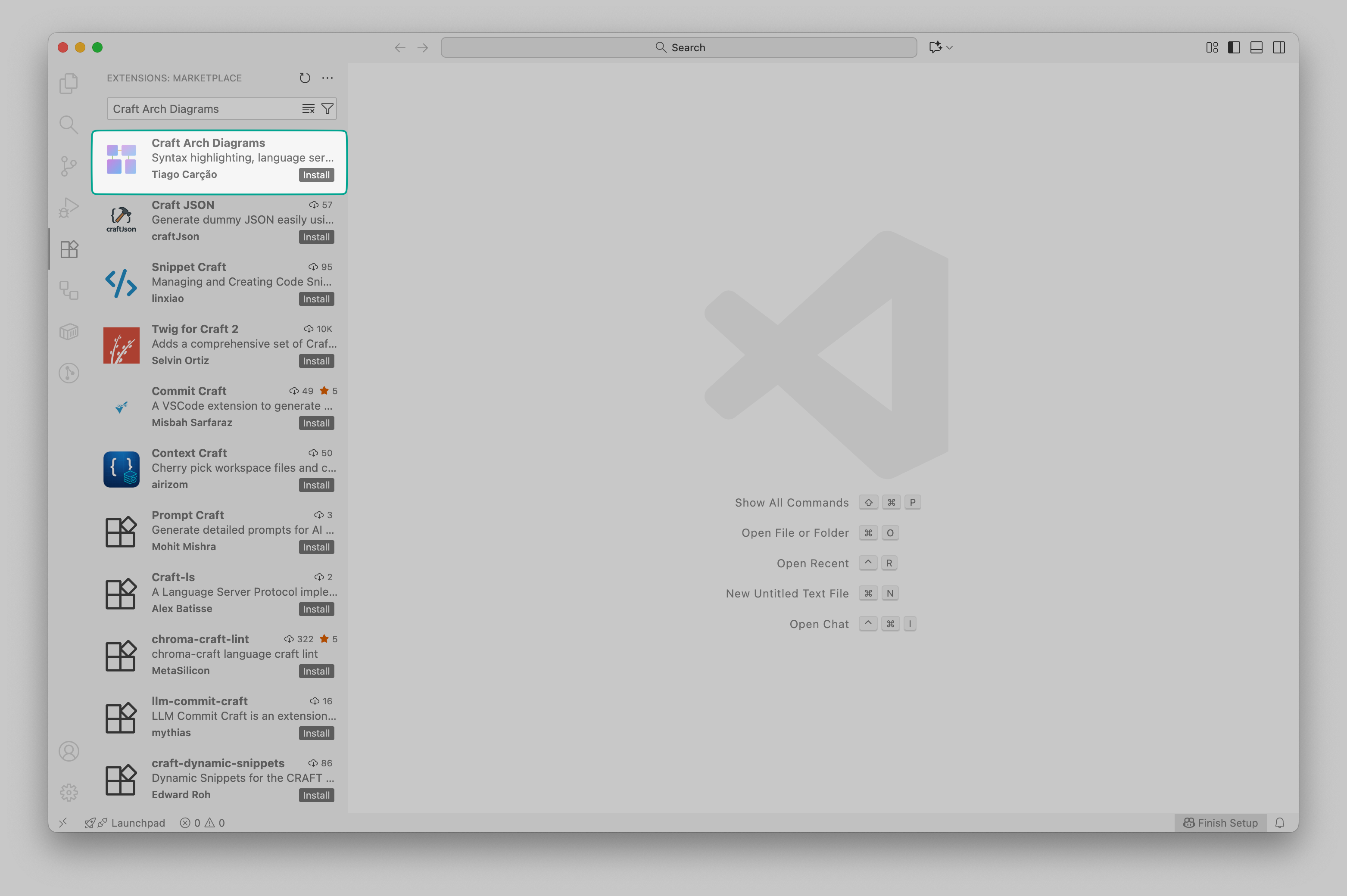

3. Search for "Craft Arch Diagrams"
4. Click the Install button
5. Wait for installation to complete
6. The extension activates automatically when you open a .craft file

Install from Command Line

For automated or scripted installations:

code --install-extension tcarcao.craft-arch-diagrams

This is useful for:

• Setting up development environments
• Installing across multiple machines
• Containerized development setups

Install from GitHub Releases

For pre-release versions or offline installation:

1. Visit the Releases page
2. Download the latest .vsix file
3. In VS Code, press Ctrl+Shift+P (Windows/Linux) or Cmd+Shift+P (Mac)
4. Type "Extensions: Install from VSIX..." and select it
5. Choose the downloaded .vsix file
6. Click "Install" when prompted

Verify Installation

After installation, verify everything works:

Step 1: Create a Test File

Create a new file named test.craft with the following content:

actors {
    user Business_User
}

domain User {
    Authentication
}

use_case "User Login" {
  when Business_User authenticates
    Authentication validates credentials
    Authentication returns access token
}

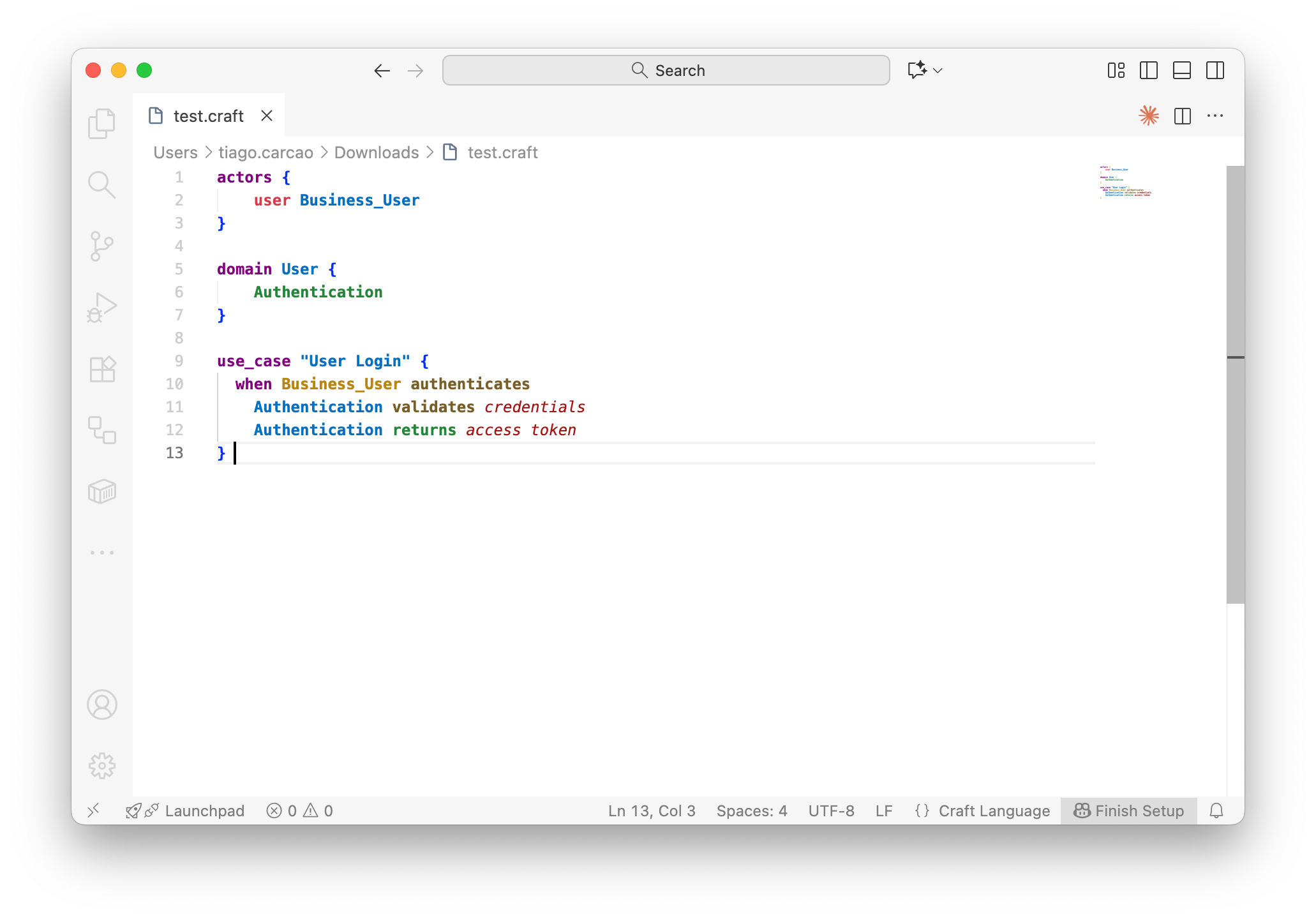

Step 2: Check Syntax Highlighting

You should immediately see:

• Keywords like actors, domain, use_case highlighted in purple/bold
• Domain names like Authentication in blue/bold
• Action verbs like validates, returns in orange/green
• Strings in colored text

If you see plain text instead:

1. Check the language mode in the status bar (bottom-right)
2. Click it and select "Craft Language" if not already selected
3. Reload VS Code if necessary: Ctrl+Shift+P → "Developer: Reload Window"

Step 3: Test Auto-completion

Position your cursor on a new line and start typing:

• Type use → Should suggest use_case with a snippet template
• Type dom → Should suggest domain
• Press Ctrl+Space → Should show all available keywords

[SCREENSHOT NEEDED: Auto-completion in action]Show auto-completion dropdown appearing while typing

Step 4: Verify Sidebar Views

1. Click the Craft icon in the Activity Bar (left sidebar)
2. You should see two panels:
   • Domain Manager: Showing domains from your file
   • Services: Showing services (if defined)

If the sidebar doesn't appear:

1. Make sure you have a .craft file open
2. Try saving the file to trigger a refresh
3. Check View → Open View → Craft Domain Manager

Step 5: Test Diagram Generation (Optional)

Server Required

This step requires the Craft diagram server running. If you haven't set it up yet, skip this step and refer to the Installation Guide.

1. With test.craft open, press Ctrl+Shift+D (Windows/Linux) or Cmd+Shift+D (Mac)
2. A diagram preview panel should open beside your code
3. If you get a connection error, verify the server is running at http://localhost:8080

Language Mode Indicator

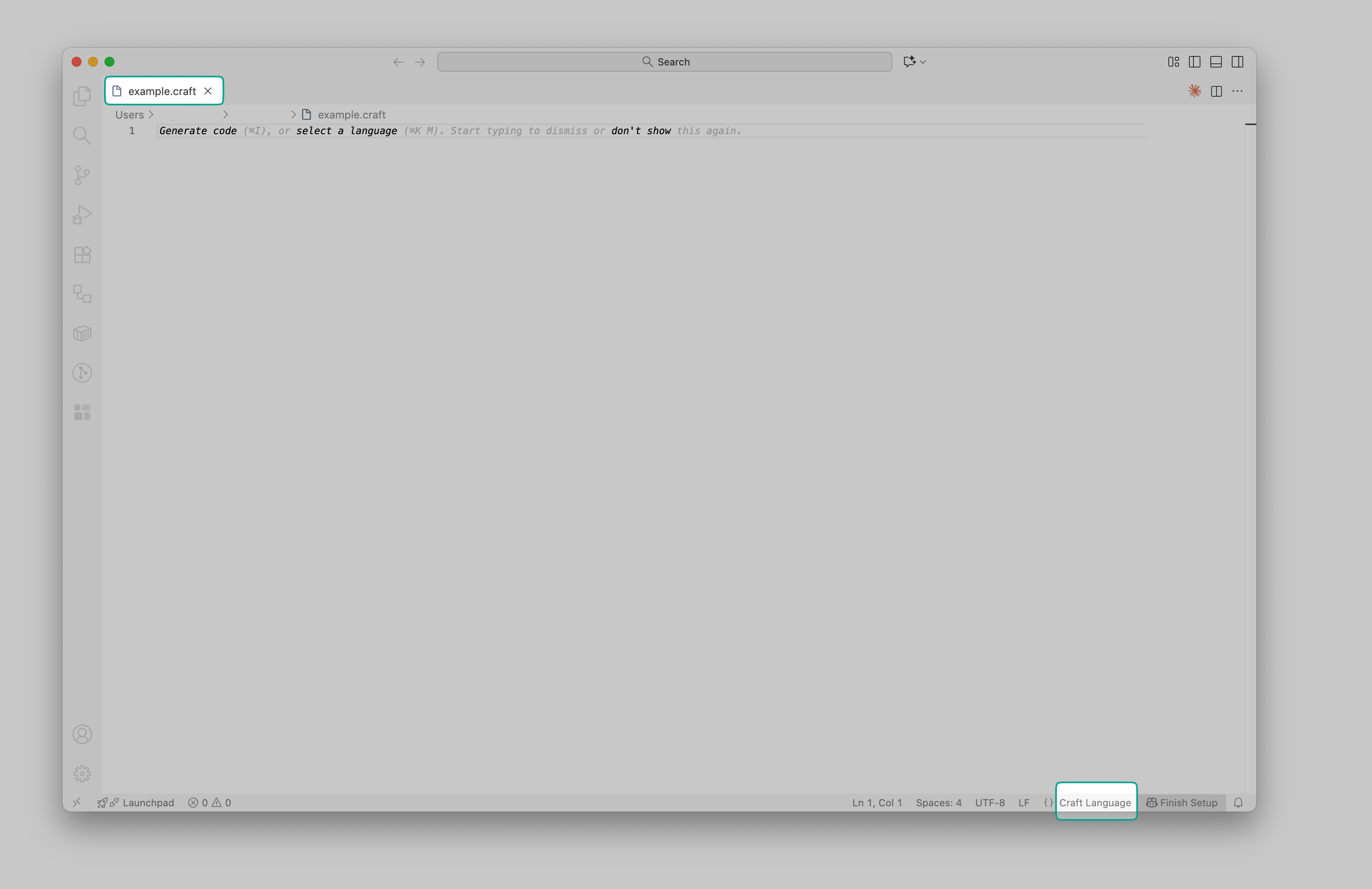

[SCREENSHOT NEEDED: Language mode selector]Show the language mode indicator in status bar and the language selection dropdown

The status bar (bottom-right) should show "Craft Language". If it shows something else:

1. Click the language indicator
2. Select "Craft Language" from the dropdown
3. The extension will activate for that file

VS Code remembers your choice for .craft files, so you only need to do this once.

Troubleshooting Installation

Extension Not Activating

Symptoms: No syntax highlighting, no sidebar views, plain text display

Solutions:

1. Check that the file has a .craft extension
2. Verify the language mode is set to "Craft Language"
3. Reload VS Code: Ctrl+Shift+P → "Developer: Reload Window"
4. Disable and re-enable the extension: Extensions view → Craft → Disable → Enable

Sidebar Views Not Appearing

Symptoms: Can't see Domain Manager or Services view

Solutions:

1. Click the Craft icon in the Activity Bar (left sidebar)
2. Go to View → Open View → Search for "Craft"
3. Ensure you have a .craft file open
4. Save your file to trigger a refresh

Auto-completion Not Working

Symptoms: No suggestions when typing

Solutions:

1. Check that semantic highlighting is enabled
2. Look for "Craft Language Server" in Output panel (View → Output → Craft Language Server)
3. Manually trigger with Ctrl+Space
4. Reload the window if issues persist

Diagram Commands Not Found

Symptoms: Can't find "Craft: Preview C4 Diagram" in Command Palette

Solutions:

1. Ensure the extension is installed and enabled
2. Open a .craft file to activate the extension
3. Check Extensions view to verify installation
4. Reinstall the extension if necessary

Updating the Extension

The extension updates automatically when new versions are released on the VS Code Marketplace:

1. VS Code checks for updates periodically
2. When an update is available, you'll see a notification
3. Click "Update" to install the new version
4. Reload VS Code if prompted

To manually check for updates:

1. Go to Extensions view (Ctrl+Shift+X)
2. Click the "..." menu at the top
3. Select "Check for Extension Updates"

Uninstalling

To remove the extension:

1. Open Extensions view (Ctrl+Shift+X)
2. Search for "Craft Arch Diagrams"
3. Click the gear icon → "Uninstall"
4. Reload VS Code when prompted

Next Steps

Now that you have the extension installed:

• Explore all features - Learn about syntax highlighting, sidebar views, and diagram generation
• Learn keyboard shortcuts - Master the command palette and shortcuts
• Configure settings - Customize server URL, timeouts, and more

First Time Users

Start with the Quick Start Guide to learn the Craft language basics and create your first architecture diagram!
